fastener help...

[chaindrive]

would anyone know the correct part # / description of the fasteners that hold the door panels and dash bezel in place?

i just bought a '96 eddie bauer that the previous owner had an after market stereo and alarm system installed.

the door panels rattle and the bezel covering the instument cluster is very loose.

i'm hoping this is fixable.

thanks for any advice.

update: apparently the bezel for the instrument cluster is secured by screws.

it is in place properly.

it's the trim piece that goes over it that's loose.



[miesk5]

yo CD, Push Pins as described in doc below are avail @ delaer parts in factory colors or at fastener supply companies that supply in black or white; most folks get plastic/ nylon spray panit mixed by local auto paint/body shop suppy store    ;

Door Trim Panel Removal TSB 99-8-15 for 93-96
Source: by Ford via v8sho.com

Section 01-05: Trim, Interior
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION
Trim Panel, DoorRemoval

1. Remove *****(s) retaining the front arm rest pad (24100) to front door trim panel (23942).


1. Remove ***** retaining inside door handle (22600). Remove inside door handle.


1. Remove the ***** retaining window regulator handle, if equipped. Remove window regulator handle and washer.


1. If equipped with power windows, remove window regulator switch housing (14527). Refer to Section 01-11.


1. If equipped with power door locks, remove the power door lock switch housing. Refer to Section 01-14A.


1. Remove door lock switch (14028), if equipped. Refer to Section 01-14A.


1. Remove outside rear view mirror control (17B676), if equipped. Refer to Section 01-09.


1. Carefully pry front door trim panel and pushpins away from front door trim shield (237A04), using Rotunda Windshield and Moulding/Trim Removal Kit 107-R0401 or equivalent. Never pull on front door trim panel to remove pushpins from front door trim shield.


Installation

1. Follow removal procedures in reverse order.


1. Tighten ***** and washer assembly 1-2 Nm (9-18 lb-in).

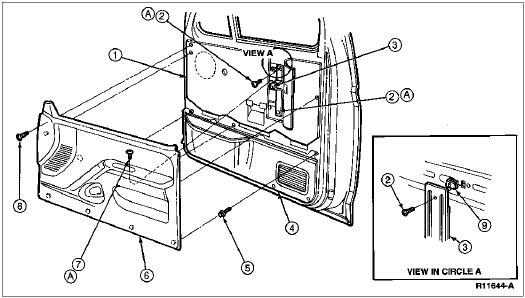

   Trim Panel, Door
2.
     237A04 Front Door Trim Shield 2 56914-S58 ***** and Washer (2 Req'd Each Side) 3 24022 Armrest Support 4 642A54 Map Pocket Assembly 5 N802900-S Pushpin (5 Req'd Each Side) 6 23942 Front Door Trim Panel 7 56914-S58 ***** (1 Req'd Each Side) 8 N806578-S58 ***** and Washer (1 Req'd Each Side) 9 N802539-S100 Spring Nut (2 Req'd Each Side) A — Tighten to 1-2 Nm
   (9-18 Lb-In)


N802900-S

http://www.somosford.com/n802900-s-push-pin/

$0.48
http://www.fordpartsgiant.com/parts/ford-pin-fixing_-n802900-s.html

check w/parts dept on colors;

Color Codes in a 96; in Door Jamb Label, the letters and/or numeral under BODY designate the interior trim color, seat type and body type. in 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
Source: by Ford via thedieselstop.com

http://www.fastenal.com/web/products/details/0162614;jsessionid=qcmvRGsN2xTMhjjG3Tdr2G98YRpK6R8vTFz1K1RJLF6nvrZ17YlQ!1586811307!763347243

http://shop.northlandfasteners.com/N13470-Door-Trim-Panel-Retainer-N13470.htm
etc.

-----

Section 01-12: Instrument Panel and Console
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION
http://www.diesel-dave.com/vehic/manual/stj/stj1c021.htm

REMOVAL AND INSTALLATION

Instrument Cluster



[chaindrive]

thanks miesk5, you always deliver!

found out the door panel fasteners are called "christmas trees" and are readily available.

so, good to go there.

maybe i'm missing it, but i'm still not clear on what attaches the instrument panel (part #04320, the a/c vents, the headlight and rear window switch are part of this assembly) to the main dash board.

the whole right hand side is loose and rattles.

any ideas on what holds this part in place?

thanks.



[miesk5]

yo C,

re, your "what attaches the instrument panel (part #04320, the a/c vents, the headlight and rear window switch are part of this assembly) to the main dash board."?

see

Instrument Panel to Cowl Top Assembly

http://www.diesel-dave.com/vehic/manual/stj/stj1c021.htm

Instrument Panel (Rattle), Loose Right Hand Attachment to Cowl Side TSB 94-15-13 for 92-94 Bronco, F-150-350 Series
Source: by Ford via thedieselstop.com

http://www.thedieselstop.com/faq/9497faq/tsb/tsb/files/941513.pdf

Instrument Panel (Rattle), Loose Right Hand Attachment to Cowl Side Instruction Sheet #6551 Cited in TSB 94-15-13 for 92-94 Bronco, F-150-350 Series
Source: by Ford via sewiv (Sandy) at http://www.supermotors.net/registry/11474/56399

Dash Repair Brackets Fabrication & Installation; for Instrument Panel (Rattle), Loose Right Hand Attachment to Cowl Side TSB 94-15-13 for 92-94 Bronco, F-150-350 Series
Source: by Steve83 (Steve, That dirty old truck) at http://www.supermotors.net/registry/2742/76849

one pic for reference, see more



Popping/Cracking from Dash Pad during Cooling TSB 92-25-09 for Light Trucks, 92-93 Super Duty & F Series

Popping/Cracking from Dash Pad during Cooling TSB 92-25-09 for Light Trucks, 92-93 Super Duty & F Series
by Ford via Steve83 (Steve, That dirty old truck) at SuperMotors.net (http://www.supermotors.net/registry/media/723386)
http://www.supermotors.net/getfile/723386/thumbnail/tsb92259dashcrackingsound.jpg (http://www.supermotors.net/registry/media/723386)
Publication Date: DECEMBER 2, 1992

LIGHT TRUCK: 1992-93 F SUPER DUTY, F-150-350 SERIES

ISSUE: A sharp "popping/cracking" noise may be heard from the instrument panel. This condition is most noticable on vehicles in warmer climates. The "popping/cracking" is caused by the rubbing of the mating surfaces between the instrument panel and the instrument pad when they are cooled, such as when air conditioning is being used.

ACTION: Eliminate the "popping/cracking" noise by inserting insulating material between the instrument panel and instrument pad. Refer to the following procedure for service details.

SERVICE PROCEDURE
1. Remove the radio.
2. Open and remove the glove box door assembly.
3. Remove the seven (7) nuts retaining the pad assembly to the instrument panel.
NOTE: THE PAD ASSEMBLY MAY BE DIFFICULT TO REMOVE BECAUSE THE PAINT MAY ACT LIKE AN ADHESIVE.
4. Remove the paint residue and other contaminants from the back of the pad assembly.
5. Install insulating tape at eight places on the instrument panel. Refer to figure for locations of tape.
6. Position pad on instrument panel.
7. Install a 3/16" I.D. X 5/8" O.D. X 1/32" to 1/16" thick, zinc coated washer (which can be obtained locally) and a nut on each stud. Hand tighten until snug.
CAUTION: DO NOT USE POWER TOOLS.
8. Install the radio and glove box assembly.

Procure locally, seven (7) 3/16" I.D. X 5/8" O.D. X 1/32" to 1/16" thick, flat steel washers. The washers must be ZINC coated, not oil coated.
Procure polyethylene tape locally. One roll, 2" wide X 72" long, repairs about eight vehicles and costs $8.09 per roll.

Procure tape from:
Walco Corporation
Adhesive Tapes Division
P.O. Box 9
1652 East Sutter Road
Glenshaw. PA. 15116
Attn: Ron Ruddock
Telephone: (412) 486-4400
Fax: (412) 486-6884

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: Eligible Under 12 Months/12,000 Miles

OPERATION DESCRIPTION TIME
922509A Install Insulating Tape 0.6 Hr.
http://www.supermotors.net/registry/media/723386

Squeak in Instrument Panel Top Right & Or Left Sides TSB 94-17-08 for 92-94

http://www.thedieselstop.com/faq/9497faq/tsb/tsb/94-17-08.php3




[chaindrive]

that more than covers the subject, miesk.

you should get paid for all you do for us.

again, thanks.
