95 .5v to center dome light

[Xltsportfun]

Ah more problems

So my dome light stopped working shortly after installing led light, the 2 map lights on either side work, but the center light doesn't when i check it with a volt meter it only has .5v, ive cleaned all the contacts but still only getting. 5v.

Any ideas on what to look for?



[Skitter302]

Sounds like a broken connection somewhere.



[miesk5]

Yo X,

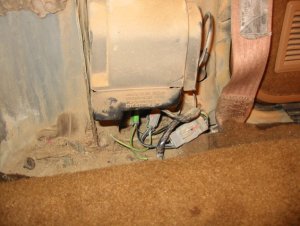

Dome Connector Corrosion in Driver's Side B Pillar pic; "...This is a picture of the connector behind the driver side seat belt retractor. This is a common area of problems. On mine, the wires had corroded and fell out of the connector. green wire had corroded on the connector and preventing power getting to the dome light..."

Source: by Jem270

Dome & Courtesy Lamps Inoperative Reasons in Short Circuits, Common Locations TSB 95-02-11 on 94-95 Bronco & Trucks
Source: by Ford



[Xltsportfun]

Checked the plug at the b pillar its looks good, dry but a little dirty. (Thanks for the info on where ithe dome wires came down to) pulled it apart and green has 13.8v at idle and blk/blu strip wire only read 1v, tried following it up under the dashboard but lost it after the blk connector harness looked ok though, do you knok where all it goes? Because if i pull fuse #8 it sounds like theres a relay kicking off.



[miesk5]

Yo,

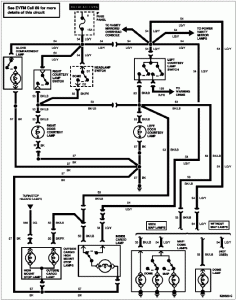

Here is some info for you



[Xltsportfun]

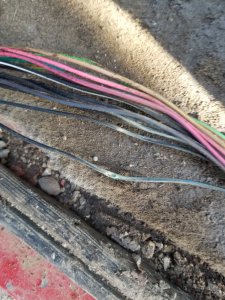

Found the break, missed it the first time i was looking



[Skitter302]

Glad you could find it and fix it. I've had breaks that have taken me 4 looks in the some spot and 8 hours of looking.



[Xltsportfun]

Found out my tailgate key switch worked just fine after finding same kinda break in the blk/wht wire near my fuel filter



[Skitter302]

Thats a win!



[johnnyreb]

Ah more problems

So my dome light stopped working shortly after installing led light, the 2 map lights on either side work, but the center light doesn't when i check it with a volt meter it only has .5v, ive cleaned all the contacts but still only getting. 5v.

Any ideas on what to look for?

I replaced the oem bulbs in the dash on my 78 with LED. Now they won,t work. I know some driving and fog lights. Have to be installed with GLOVES ON. Are these LED BULBS the same way. I installed them with bare hands and now NONE OF THEM BURN. I,m going back to OEM
