1996 fuel pump wiring issues

96ford400

New member
Joined
Oct 16, 2020
Messages
3
Reaction score
0
Location
Florida

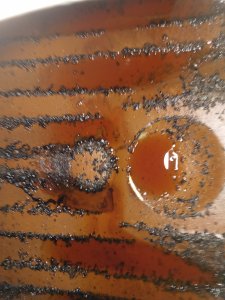

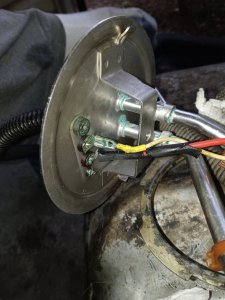

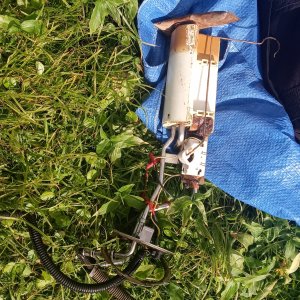

Hey, im Doc, I got a 1996 bronco with the 5.0. Bought cheap and already wrecked but wiring is a nightmare. The hanger assembly has 4 wires at the top but mine had only 2 connected with the float assembly grounded to the mounting ***** itself. What is connected to what on the pump. Took the tank home to clean...Pump had no power and wouldnt run. Inertia switch checked out.. Also needs a new return line to the pump also. What is the line size for the line going back to the pump not to the fuel filter? Just verifying. Much appreciated!


Attachments

  • Message_1607897935818.jpg
    1.4 MB · Views: 4
  • IMG_20201213_130631_573.jpg
    755.7 KB · Views: 4
  • 20201206_134526.jpg
    2 MB · Views: 4
  • 20201213_121401.jpg
    1.9 MB · Views: 4

miesk5

96 Bronco 5.0
Staff member
Moderator
Joined
Oct 18, 2005
Messages
8,402
Reaction score
423
Location
Floating in the Pacific
yo Doc,
Welcome!

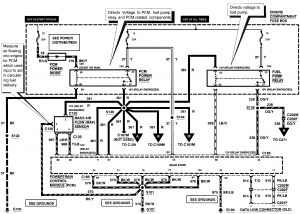

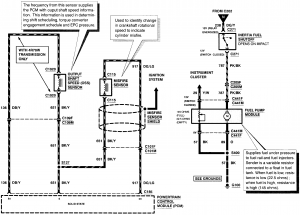

Let's workout the wiring first.


You must be registered for see images attach


Supply (pressure) lines are blue; return lines are gray.

Blue supply lines are 3/8"; gray return lines are 5/16".
I prefer NAPA LINES.

For much more Fuel System info, see http://www.supermotors.net/clubs/superford/registry/2742/12737-2


ASAP, find out if speed control recall work, if equipped was completed @ Recalls Look-up by VIN (Vehicle Identification Number) @ https://vinrcl.safercar.gov/vin/

"Summary: ON CERTAIN PICKUP TRUCKS, PASSENGER VEHICLES, SPORT UTILITY VEHICLES, AND MOTOR HOMES CHASSIS, THE SPEED CONTROL DEACTIVATION SWITCH MAY, UNDER CERTAIN CONDITIONS, LEAK INTERNALLY AND THEN OVERHEAT, SMOKE, OR BURN. THIS COULD RESULT IN AN UNDERHOOD FIRE."

To confirm current status, use this guide by jowens1126 @ https://www.fullsizebronco.com/threads/93-94-96-cruise-control-recalls-repair.457065/#post-6530073

Note that the 93 recall is different than the 94-96 recall.

Here's the 1996 Bronco/F-Series Workshop Manual partial @ http://www.diesel-dave.com/vehic/manual/stj/stjleft.htm

96 Bronco Owner's Guide, Maintenance Schedules & Parts and Accessories by Ford @ https://www.fleet.ford.com/parts-service/resources/owner-manuals/
You must be registered for see images attach
You must be registered for see images attach

96 Bronco Dealer Brochure @ https://www.supermotors.net/registry/3549/15947-2
... scroll down

96 Bronco Quick Tips Brochure Excerpts & some Eddie Bauer options @ http://www.supermotors.net/registry/2742/80431-2

Register to see most Ford dealer maintenance/repairs done @ any dealership nation-wide @ Welcome to Ford Owner | Official Ford Owner Site .
Al

Last edited:

96ford400

New member
Joined
Oct 16, 2020
Messages
3
Reaction score
0
Location
Florida
yo Doc,
Welcome!
Let's workout the wiring first.


You must be registered for see images attach


You must be registered for see images attach


Supply (pressure) lines are blue; return lines are gray.

Blue supply lines are 3/8"; gray return lines are 5/16".
I prefer NAPA LINES.

For much more Fuel System info, see http://www.supermotors.net/clubs/superford/registry/2742/12737-2


ASAP, find out if speed control recall work, if equipped was completed @ Recalls Look-up by VIN (Vehicle Identification Number); or @ Welcome to Ford Owner | Official Ford Owner Site; or ... have VIN ready. While there, see most Ford dealer maintenance/repairs done @ any dealership nation-wide.

"Summary: ON CERTAIN PICKUP TRUCKS, PASSENGER VEHICLES, SPORT UTILITY VEHICLES, AND MOTOR HOMES CHASSIS, THE SPEED CONTROL DEACTIVATION SWITCH MAY, UNDER CERTAIN CONDITIONS, LEAK INTERNALLY AND THEN OVERHEAT, SMOKE, OR BURN. THIS COULD RESULT IN AN UNDERHOOD FIRE."

To confirm current status, use this guide by jowens1126 @ 93 & 94-96 Cruise Control Recalls Repair

Here's the 1996 Bronco/F-Series Workshop Manual partial



96 Bronco Owner's Guide, Maintenance Schedules & Parts and Accessories by Ford @ Owner Manuals | fleet.ford.com



96 Bronco Dealer Brochure @ 1996 Ford Bronco Technical Info pictures, videos, and sounds | SuperMotors.net ... scroll down



96 Bronco Quick Tips Brochure Excerpts & some Eddie Bauer options @ 1983 Ford Bronco 96 EB Bronco Brochures pictures, videos, and sounds | SuperMotors.net

Register to see most Ford dealer maintenance/repairs done @ any dealership nation-wide @ Welcome to Ford Owner | Official Ford Owner Site .
Al

Much appreciated on the information... Im going to look through all of it after I get dinner situated. Nothing like some light reading!


miesk5

96 Bronco 5.0
Staff member
Moderator
Joined
Oct 18, 2005
Messages
8,402
Reaction score
423
Location
Floating in the Pacific
Yo,
YW!
I just edited my previous reply to include the urls because this pos site doesn't like copy and paste.


96ford400

New member
Joined
Oct 16, 2020
Messages
3
Reaction score
0
Location
Florida
Yo,
YW!
I just edited my previous reply to include the urls because this pos site doesn't like copy and paste.
Also, the tach isnt registering, where would I start? There are alot of ground issues from the wreck it was in. Im still repairing everything on the passenger side fender, it ripped a lot of the wiring out... Ignition cylinder was tampered with but before I fixed the fuel pump, it would turn over just not fire up.. Even the door chimes worked with the cobbled together wires.


miesk5

96 Bronco 5.0
Staff member
Moderator
Joined
Oct 18, 2005
Messages
8,402
Reaction score
423
Location
Floating in the Pacific
Yo,

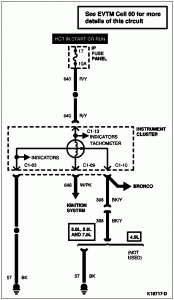

Tachometer Inoperative, Gasoline Engine
Circuit.
Sensor.
GO to Pinpoint Test L. @ http://www.diesel-dave.com/vehic/manual/stj/stjd1017.htm#l


You must be registered for see images attach
You must be registered for see images attach

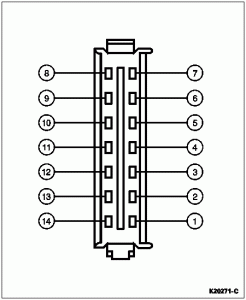

In connector:
Pin Number Circuit Circuit Function
1 904 (LG/R) Charge Indicator Lamp
2 932 (GY/W) High Beam Indicator Input
3 57 (BK) Ground
4 450 (DG/LG) Fasten Belt Indicator Input
5 29 (Y/W) Fuel Level Input (with Tachometer)
6 19 (LB/R) Instrument Cluster Illumination Input
7 57 (BK) Ground
8 2 (W/LB) Right Turn Input
9 648 (W/PK) Tachometer Input Signal
10 398 (BK/Y) Tachometer Ground (for 8 Cylinder)
11 784 (LB/BK) Low Range Indicator Input
12 210 (LB) 4x4 Indicator Input
13 640 (R/Y) Power Supply in RUN and START
14 16 (R/LG) Charge Indicator Input
